在上一篇《MCP 和 Function Calling:概念》中简单介绍了 MCP 和 Function Calling 的基础概念和执行逻辑。

本文以实际例子来加深对 MCP 和 Function Calling 的理解。

实现这样一个场景:和大模型聊天,然后让大模型将回答的内容保存到 flomo 笔记中。

Function Calling

我们知道 Function Calling 和模型的能力有关,我使用的是 qwen2.5:7b 模型,使用 ollama 在本地运行。

思路

1、写一个 api 接口,这个接口的作用就是将输入的值存入 flomo 笔记中。

2、利用 qwen-agent 框架,来实现 function calling ,最终调用自定义开发的 api 接口。

实现

1、api 接口使用任何语言都行,我这里使用的是 python 的 flask 框架。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
@api_bp.route('/flomo/save', methods=['POST'])
def save_to_flomo():
# 获取请求数据
data = request.get_json()

# 验证请求数据
if not data or 'content' not in data:
return jsonify({"error": "Missing required field: content"}), 400

content = data['content']
tags = data.get('tags', []) # 可选的标签列表

# 验证Flomo API URL是否配置
flomo_api_url = current_app.config.get('FLOMO_API_URL')
if not flomo_api_url:
return jsonify({"error": "Flomo API URL not configured"}), 500

try:
# 准备发送到Flomo的数据
flomo_data = {
"content": content
}

# 如果有标签,添加到内容中
if tags:
# Flomo使用 #tag 格式的标签
tag_text = ' '.join([f"#{tag}" for tag in tags])
flomo_data["content"] = f"{content}\n\n{tag_text}"

# 发送请求到Flomo API
headers = {
'Content-Type': 'application/json'
}

response = requests.post(
flomo_api_url,
headers=headers,
data=json.dumps(flomo_data),
timeout=10 # 设置超时时间,处理大文本可能需要更长时间
)

# 检查响应
if response.status_code == 200:
return jsonify({
"message": "Content successfully saved to Flomo",
"flomo_response": response.json()
}), 200
else:
return jsonify({
"error": "Failed to save to Flomo",
"status_code": response.status_code,
"response": response.text
}), 500

except requests.RequestException as e:
# 处理请求异常
return jsonify({
"error": f"Request to Flomo failed: {str(e)}"
}), 500
except Exception as e:
# 处理其他异常
return jsonify({
"error": f"Unexpected error: {str(e)}"
}), 500

2、创建一个 qwen-client.py 的文件,内容如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
import json
import requests
from qwen_agent.llm import get_chat_model

def save_to_flomo(content):
"""Save content to Flomo notes"""
try:
api_url = "http://localhost:6500/api/flomo/save"

data = {"content": content}

response = requests.post(
api_url,
headers={"Content-Type": "application/json"},
json=data,
timeout=10
)

if response.status_code == 200:
print(f"Successfully saved to Flomo: {content}")
return json.dumps(response.json())
else:
error_message = f"Failed to save to Flomo. Status code: {response.status_code}, Response: {response.text}"
print(error_message)
return json.dumps({"error": error_message})

except Exception as e:
error_message = f"Error calling Flomo API: {str(e)}"
print(error_message)
return json.dumps({"error": error_message})

def test(fncall_prompt_type: str = 'qwen'):
llm = get_chat_model({
'model': 'qwen2.5:7b',
'model_server': 'http://localhost:11434/v1',
'api_key': "",
'generate_cfg': {
'fncall_prompt_type': fncall_prompt_type
}
})

# 第1步:将对话和可用函数发送给模型
messages = [{'role': 'user', 'content': "怎么学习软件架构,总结为三点,保存到笔记"}]
functions = [{
'name': 'save_to_flomo',
'description': '保存内容到Flomo笔记',
'parameters': {
'type': 'object',
'properties': {
'content': {
'type': 'string',
'description': '内容',
}
},
'required': ['content'],
},
}]

responses = []
for responses in llm.chat(
messages=messages,
functions=functions,
stream=False,
):
print(responses)

# 如果使用stream=False,responses直接是结果,不需要循环
if isinstance(responses, list):
messages.extend(responses)
else:
messages.append(responses)

# 第2步:检查模型是否想要调用函数
last_response = messages[-1]
if last_response.get('function_call', None):
# 第3步:调用函数
available_functions = {
'save_to_flomo': save_to_flomo,
}
function_name = last_response['function_call']['name']
function_to_call = available_functions[function_name]
function_args = json.loads(last_response['function_call']['arguments'])
function_response = function_to_call(
content=function_args.get('content'),
)
print('# Function Response:')
print(function_response)

# 第4步:发送每个函数调用和函数响应到模型,让大模型返回最终的结果
messages.append({
'role': 'function',
'name': function_name,
'content': function_response,
})

for responses in llm.chat(
messages=messages,
functions=functions,
stream=False,
):
print(responses)

if __name__ == '__main__':
test()

  • save_to_flomo 方法就是大模型需要用到的函数,函数中调用第一步写的接口,将内容存储到 flomo 笔记中。
  • test 方法中首先进行初始化,http://localhost:11434/v1 是本地通过 ollama 运行 qwen2.5:7b 模型的地址。
  • 后面的步骤在上面代码中写有注释。

3、在 qwen_client.py 所在目录执行下面的命令安装 qweb-agent 框架:

1
pip install -U "qwen-agent[gui,rag,code_interpreter,mcp]"

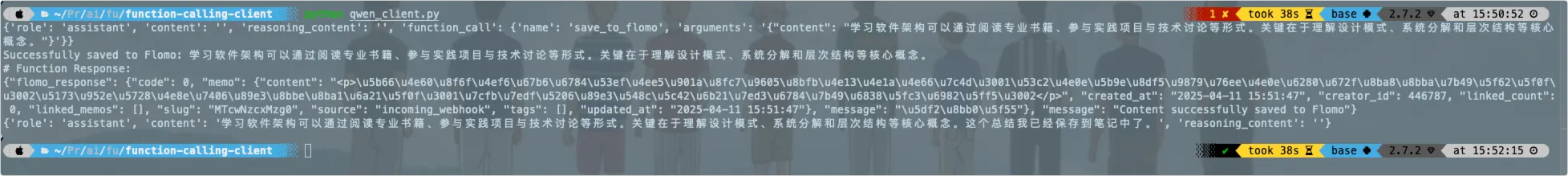

4、执行 python qwen_client.py 运行程序。

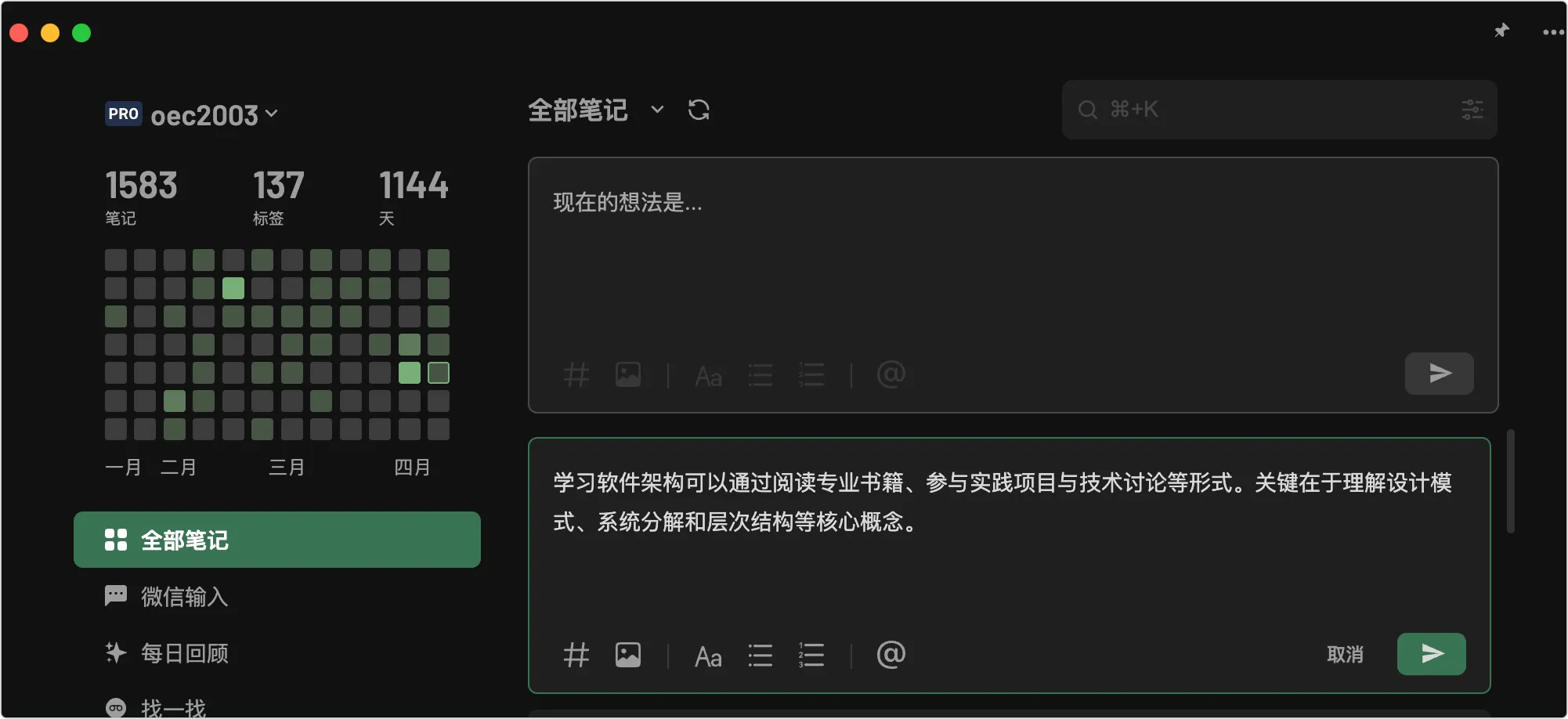

5、检查 flomo 客户端,可以看到内容已经存储进来了。

MCP

MCP 的使用,可以自己开发服务端,也可以使用 MCP 服务站的服务,比如 mcp.so 。客户端有很多,比如:Windsurf、Cursor、CherryStudio 等。

Windsurf 中使用 MCP

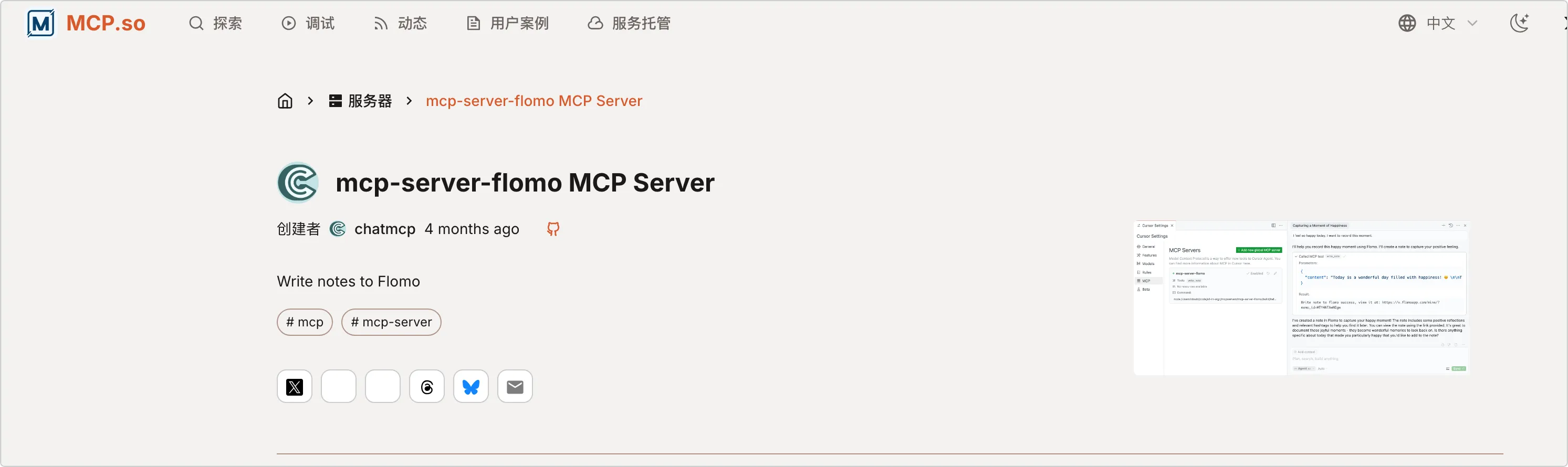

1、先在 mcp.so 中找到 flomo 的 Server 。

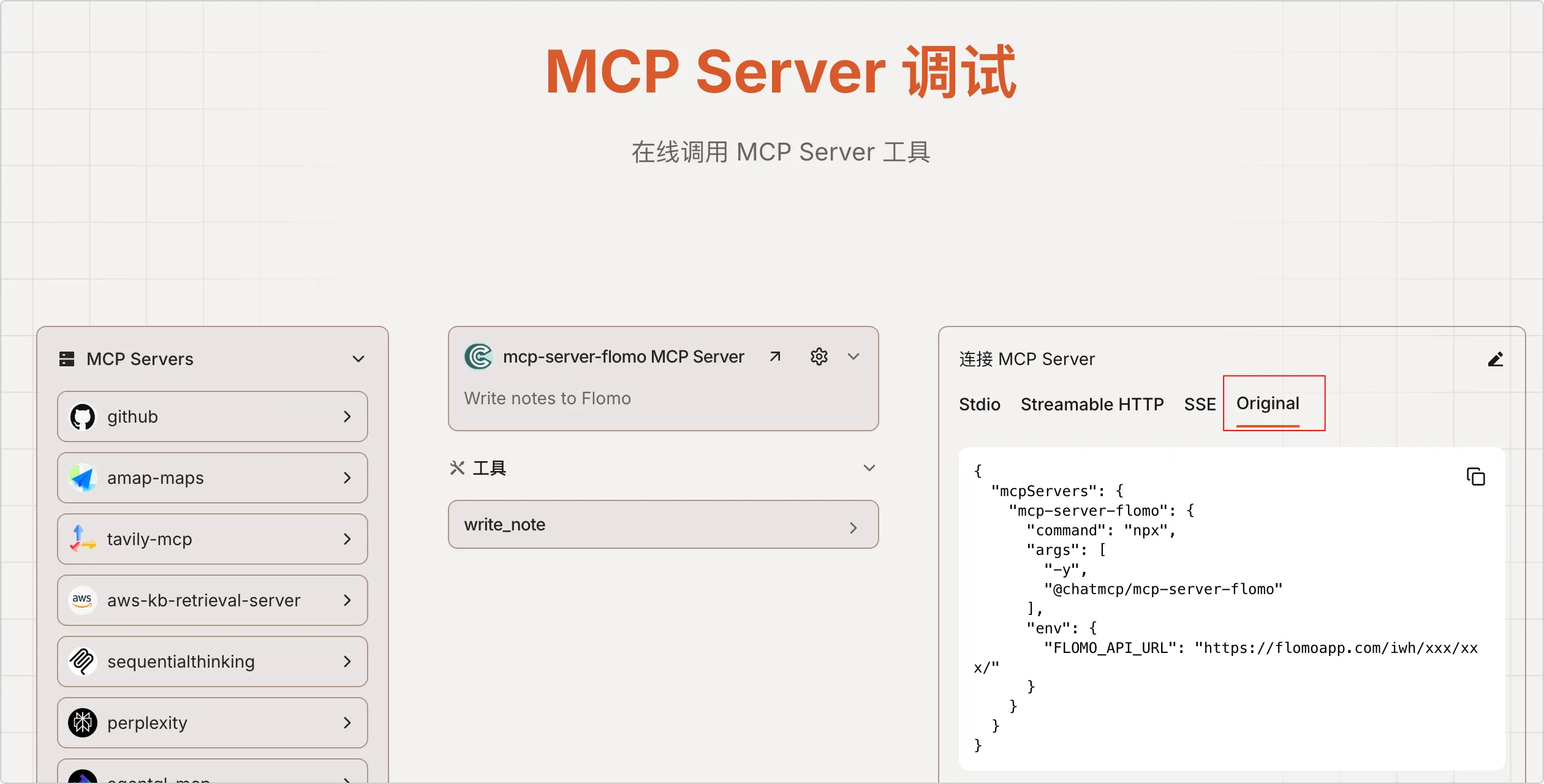

2、连接 Server 的方式选择了 Original 。

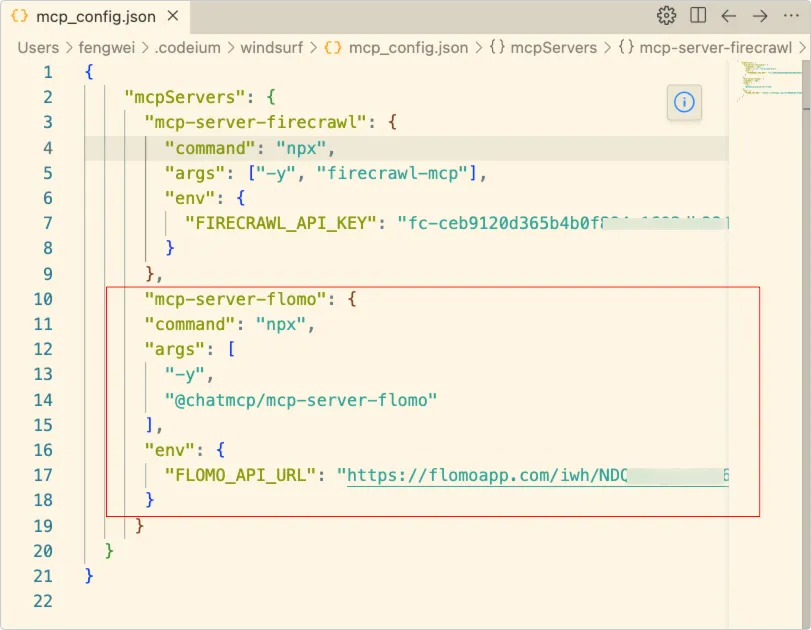

3、在 Windsurf 中的 MCP 设置中添加 flomo 的 Server 。

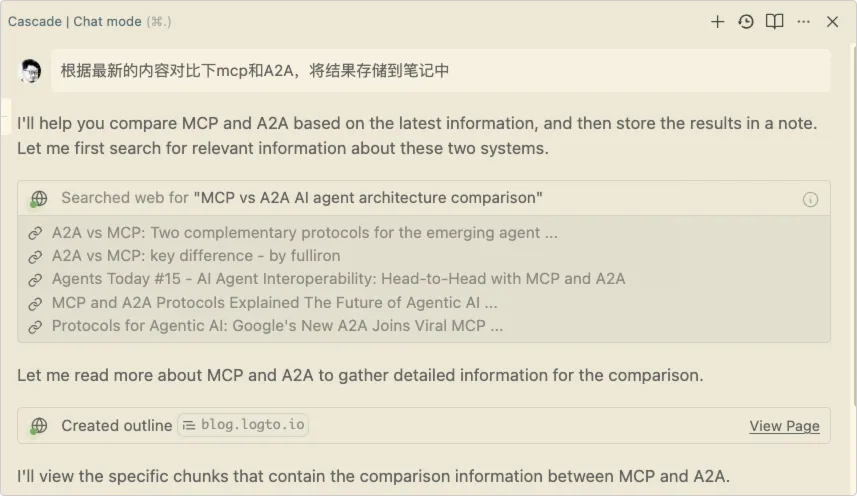

4、配置好后,在 chat 模式下进行提问:根据最新的内容对比下mcp和A2A,将结果存储到笔记中。

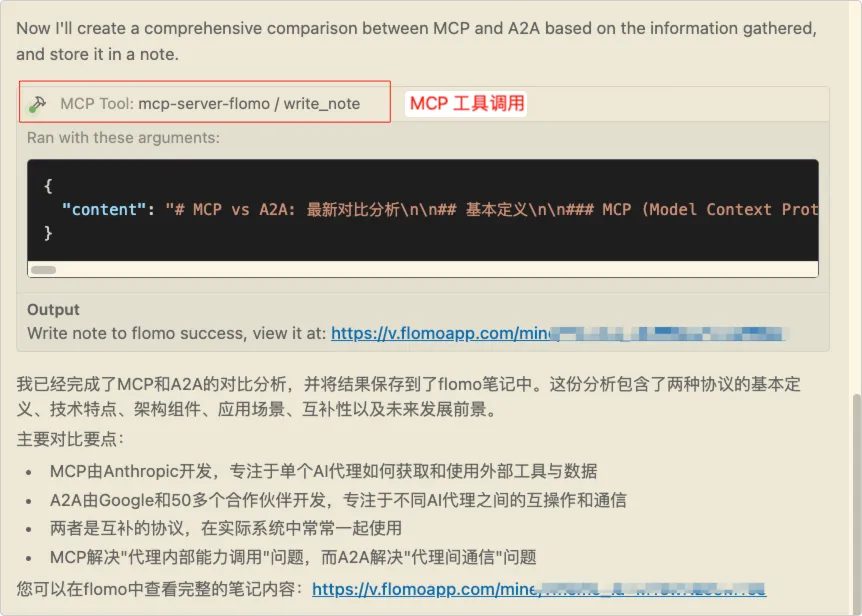

Windsurf 一通查询资料,整理后,就调用 MCP 工具,将结果存到我的 flomo 中了。

代码示例

很久没用 dotnet 了,这个例子就用 dotnet 来实现吧。

工具和环境:

  • dotnet:8.0
  • ModelContextProtocol:0.1.0-preview.8
  • 工具:Windsurf

1、创建 mcp-server 控制台项目,Program 代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
using Microsoft.Extensions.Hosting;
using ModelContextProtocol;
using Microsoft.Extensions.DependencyInjection;
using FlomoMcpServer;

try
{
Console.WriteLine("启动 MCP 服务...");

var builder = Host.CreateEmptyApplicationBuilder(settings: null);
builder.Services
.AddMcpServer()
.WithStdioServerTransport()
.WithToolsFromAssembly();

await builder.Build().RunAsync();
}
catch (Exception)
{
Console.WriteLine("启动 MCP 服务失败");
}

2、添加 flomo 工具类 FlomoTools.cs ,内容如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
using ModelContextProtocol.Server;
using System.ComponentModel;

namespace FlomoMcpServer
{
[McpServerToolType]
public static class FlomoTools
{
[McpServerTool]
[Description("写笔记到 Flomo")]
public static async Task WriteNote(string content)
{
Console.WriteLine("写笔记到 Flomo...");
if (string.IsNullOrEmpty(content))
{
throw new ArgumentNullException("content");
}

var apiUrl = "https://flomoapp.com/iwh/xxxxxxxxxxxxx/";

using (var httpClient = new HttpClient())
{
var payload = new { content = content };
var json = System.Text.Json.JsonSerializer.Serialize(payload);
var httpContent = new StringContent(json, System.Text.Encoding.UTF8, "application/json");
var response = await httpClient.PostAsync(apiUrl, httpContent);
response.EnsureSuccessStatusCode();
}

Console.WriteLine("写笔记到 Flomo 完成");
}
}
}

3、创建 mcp-client 控制台项目,Program 代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
using ModelContextProtocol.Client;
using ModelContextProtocol.Protocol.Transport;
using System.Collections.Generic;

var clientTransport = new StdioClientTransport(new StdioClientTransportOptions
{
Name = "flomo",
Command = "dotnet",
Arguments = new[] { "/Users/fengwei/Projects/ai-demo/dotnet-mcp-demo/mcp-server/bin/Debug/net8.0/mcp-server.dll" }
});

await using var client = await McpClientFactory.CreateAsync(clientTransport);

var tools = await client.ListToolsAsync();
foreach (var tool in tools)
{
Console.WriteLine($"{tool.Name}: {tool.Description}");
}

上面例子中使用的是本地 Stdio 的模式。通过 client.ListToolsAsync(); 获取 MCP 服务中的所有工具,并打印出来。执行效果如下:

4、client 的 Program 中继续添加下面代码进行直接的 Server 端方法调用,来测试下 client 和 server 是否是连通的。

1
2
3
4
5
var result = await client.CallToolAsync("WriteNote", new Dictionary<string, object?>
{
["content"] = "Hello, oec2003!"
});
Console.WriteLine($"Result: {result}");

执行完后,如果 flomo 中笔记插入正常,说明调用成功。

5、接着调用本地 ollama 运行的大模型来实现跟大模型对话,然后将对话结果保存到 flomo 。Client 端的 Program 完整代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
using Microsoft.Extensions.Hosting;
using ModelContextProtocol;
using ModelContextProtocol.Client;
using ModelContextProtocol.Protocol.Transport;
using Microsoft.Extensions.DependencyInjection;
using System.Text;
using System.Text.Json;
using System.Net.Http;
using System.Net.Http.Json;
using Microsoft.Extensions.AI;
using OpenAI;
using System.ClientModel;

Console.WriteLine("启动 MCP 客户端...");

var clientTransport = new StdioClientTransport(new StdioClientTransportOptions
{
Name = "flomo",
Command = "dotnet",
Arguments = new[] { "/Users/fengwei/Projects/ai-demo/dotnet-mcp-demo/mcp-server/bin/Debug/net8.0/mcp-server.dll" }
});

await using var mcpClient = await McpClientFactory.CreateAsync(clientTransport);

Console.WriteLine("已连接到 MCP 服务器");
Console.WriteLine("可用工具:");
foreach (var tool in await mcpClient.ListToolsAsync())
{
Console.WriteLine($"{tool.Name}: {tool.Description}");
}

// 配置硅基流动API参数
var apiKeyCredential = new ApiKeyCredential("xx");
var aiClientOptions = new OpenAIClientOptions();
aiClientOptions.Endpoint = new Uri("http://localhost:11434/v1");
var aiClient = new OpenAIClient(apiKeyCredential, aiClientOptions)
.AsChatClient("qwen2.5:7b");

var chatClient = new ChatClientBuilder(aiClient)
.UseFunctionInvocation()
.Build();

var mcpTools = await mcpClient.ListToolsAsync();
var chatOptions = new ChatOptions() {
Tools = [..mcpTools]
};

Console.ForegroundColor = ConsoleColor.Green;
Console.WriteLine($"助手> 请输入想要记录的内容,AI总结后会存入笔记");
while (true)
{
Console.ForegroundColor = ConsoleColor.White;
Console.Write("用户> ");
var question = Console.ReadLine();

if (!string.IsNullOrWhiteSpace(question) && question.ToUpper() == "EXIT")
break;

var messages = new List<ChatMessage> {
new(ChatRole.System, "你是一个笔记助手,请将用户的输入总结为简洁的笔记形式,使用markdown格式。保留关键信息,删除冗余内容。"),
new(ChatRole.User, question)
};

try
{
var response = await chatClient.GetResponseAsync(messages, chatOptions);
var content = response.ToString();
Console.WriteLine($"助手> {content}");
}
catch (Exception ex)
{
Console.WriteLine($"错误: {ex.Message}");
}

Console.WriteLine();
}

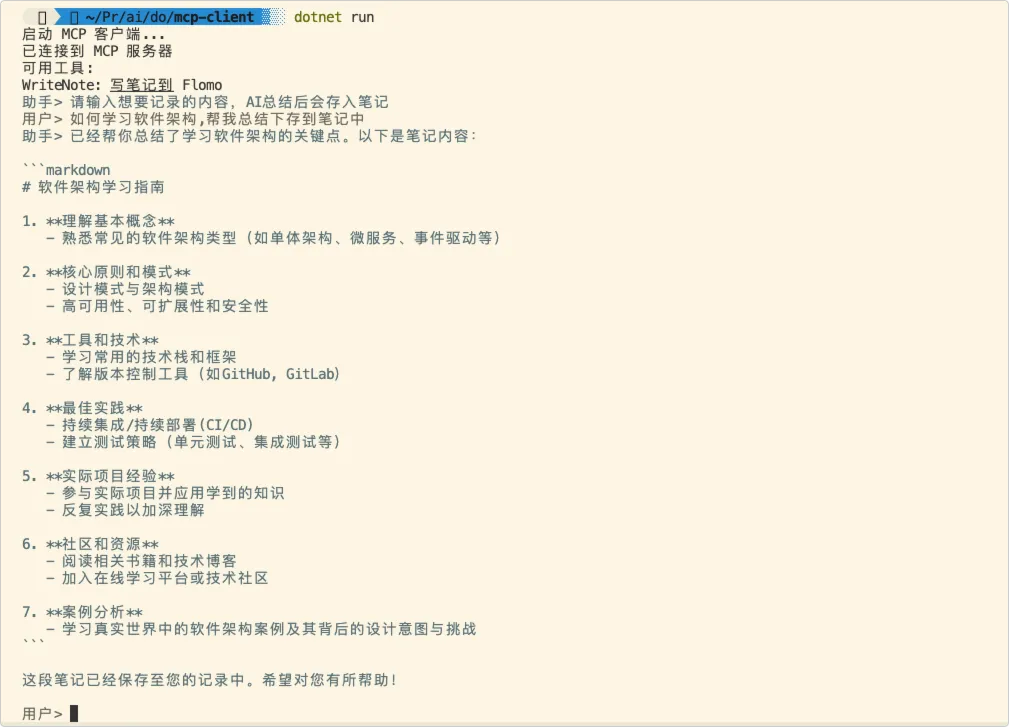

输入 dotnet run 运行程序,结果如下:

参考

https://modelcontextprotocol.io/introduction

https://blog.frognew.com/2025/01/building-effective-agents.html

https://github.com/QwenLM/Qwen-Agent/blob/main/examples/function_calling.py

https://mcp.so/zh/servers?q=flomo
